Water accounting
Part number: JOOBY JWM4-130P-LRIR

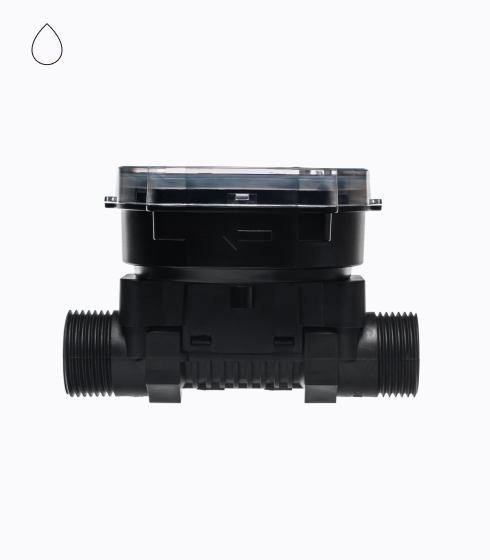

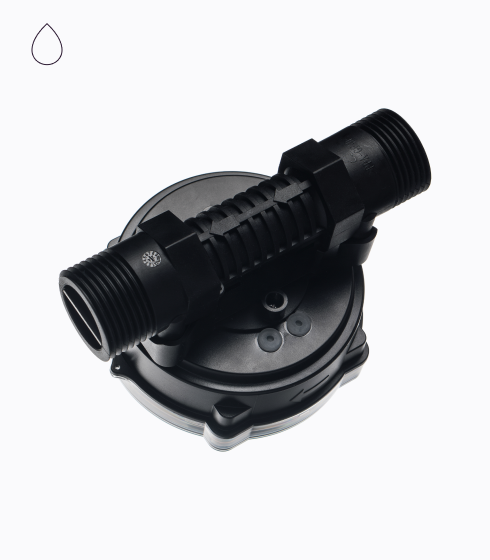

JOOBY JWM4-130P-LRIR (DN20)

Ultrasonic water meter

The JOOBY JWM ultrasonic water meter is a reading device for measuring cold and hot water consumption in residential buildings, offices, and industrial facilities. The ultrasonic technology allows for accurate measurements without moving parts. The device features a two-row LCD for easy data readings.

Data can also be monitored in real time via LoRaWAN or IoT connection. The meter runs on long-life batteries and its functions include an archive of readings, event logs, and alarms. It can detect leaks, pipe ruptures, reverse flow, and other problems.

Nominal water consumption for this model is 4 m3/h.

*LoRaWAN is a registered trademark of Semtech Corporation.

Discuss the Project Order Samples

Product information

Water flow measurement without moving parts Bi-directional flow measurements
High-accuracy calculation of water consumption Flow direction indication
Long-term measurement stability and reliability Meter parameterization
9 and 5 digits, two-line LCD, total volume, and instantaneous flow rate indication Durable composite body food grade fiber-filled PPA-GF40
Sensitive in low flows: down to 1 L/h Measurement units: m3-L/h
Compatible with LoRa IoT technologies Flow presence animation
Open API for new integration with supplier’s accounting systems DSP measurement core
Already connected to Jooby RDC Two independent cores for measurement and communication
Temperature classes: T30, T50, T30/90, T90 Battery health remote control and adaptive passivation algorithm for its maintenance
Nominal flow: 4 m3/h Metering archive registration
Wide measurement range: Q3/Q1 = R 250 3-month hourly log capacity
Installation in any position 2-year daily log capacity
Environment classes: E2/M1/B 256 last alarm and events log
Protection class: IP68 Transport mode for low battery consumption
Pressure class: PN16 Automatic disabling of transport mode after the flow of some liters of water
Maintenance-free Automatic activation after quitting from transport mode
Battery lifetime: more than 16 years OTA (ABP) LoRaWAN server connection
Two independent batteries for flow measurement and communication core

How It Works

OPERATION PRINCIPLE

The meter is installed with mounting fittings and cap nuts of an appropriate size. Once installed and filled with water, it is ready for activation and can be connected to a LoRaWAN network to transmit water consumption readings to your accounting system.

The device can store hourly readings for three months and daily readings for two years in a dedicated log. In addition, the log can store 256 latest events or alarms.

The meter is powered by two individual 3.6 V batteries with a battery life of 15 years.
