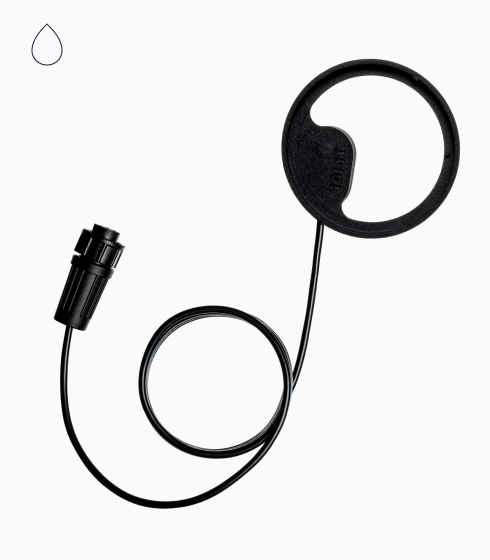

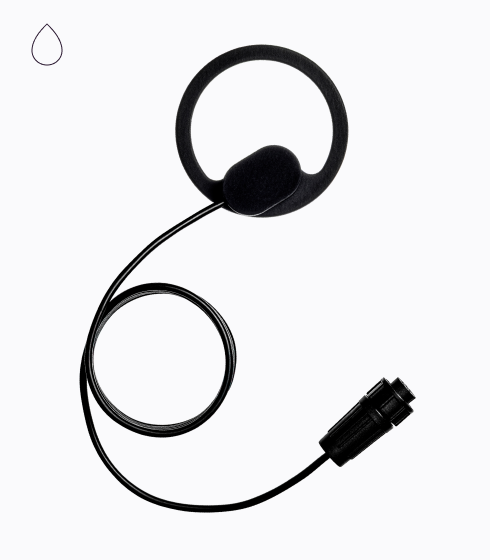

JOOBY AQUARIS SNS WIBM01 100
Smart external connection sensor for Bmeters water meters
This inductive sensor is designed to transmit data from analog water meters to the pulse radio module Jooby OMNI RM LoRaWAN 4PU 200/204/205 EU.
The device is installed on the enclosure of the water meter and connected to the radio module. The sensor then begins to record the number of revolutions of the meter’s measuring hand and transmits the data to the pulse radio module.
*LoRaWAN is a registered trademark of Semtech Corporation.
- Remote data collection Bmeters GSD8 GSD8-I 1/2" Q3-2.5*
- Average lifetime 10 years (1 data transfer per day)**
- Mounting up to 5 minutes
*The complete list of compatible meter models is shown in the table below **Service life depends on data transfer frequency
Product information
- Description
- Downloads
OPERATION PRINCIPLE
After installing the sensor on the meter’s enclosure, the process of data reading starts. This information is received by the radio module in the form of counted pulses, with their number corresponding to the number of revolutions of the water meter’s hand or a multiple of it.
Data transmission is performed through a 1.5 meter long cable with a PY07-6 connector.
All information received from the sensor is stored in the radio module’s non-volatile memory. The device transmits this information to the resource provider’s server via the LoRaWAN network at defined time intervals.
The system transforms the received data into a format that can be accessed by the resource provider for monitoring, analyzing, and managing via the administration panel.
Sensor Specifications
- Sensor model – Jooby Aquaris SNS WIBM01 100
- Water meter model – Bmeters GSD8 GSD8-I 1/2″ Q3-2.5
- Pulse coefficient – 1 pulse per 1 liter
- Operating temperature – 1 °C … 60 °C
