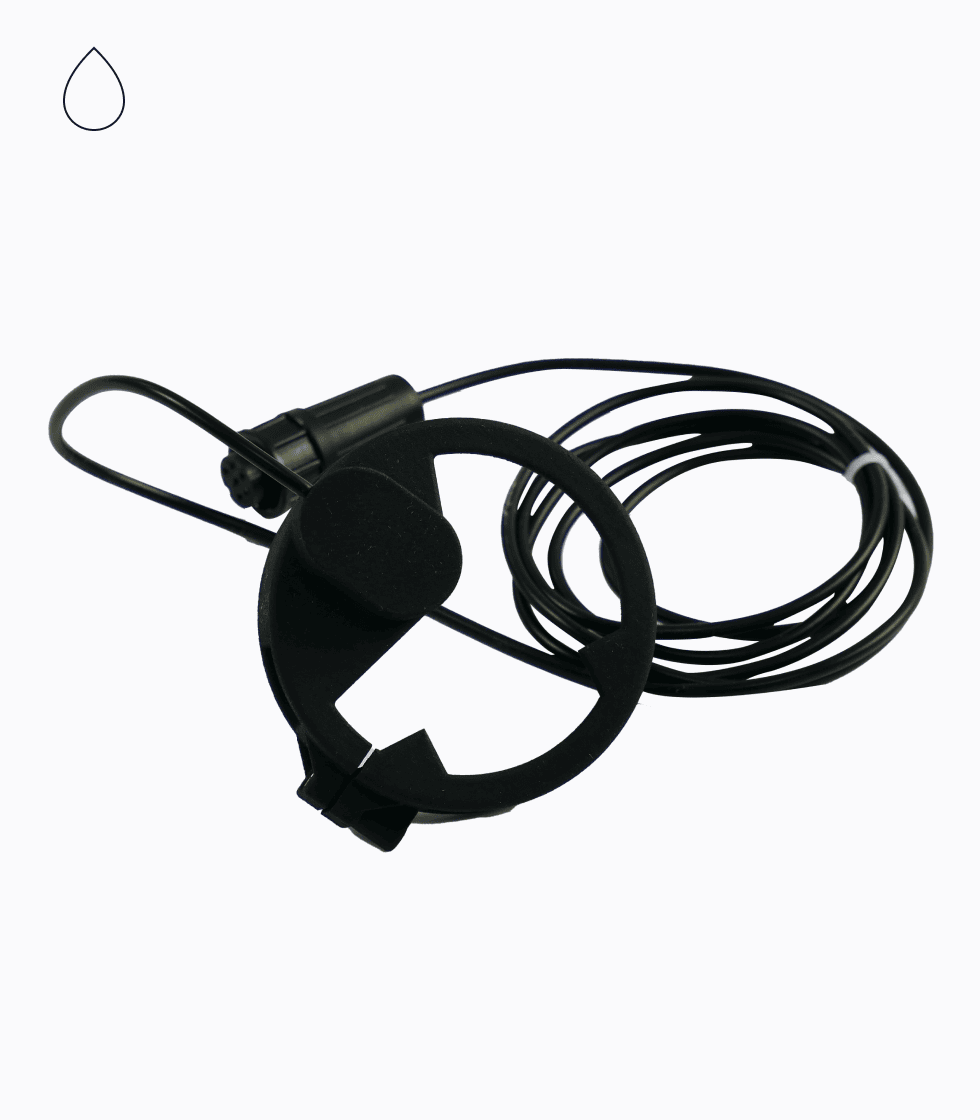

JOOBY AQUARIS SNS WOGI01 100
Smart external connection sensor for Gidrotek water meters
Optical sensor for transmitting data from analog water meters to the Jooby OMNI RM LoRaWAN 4PU 200 / 204 / 205 EU pulse radio module.
The device is mounted on the meter housing and connected to the radio module. The sensor detects the number of rotations of the measuring pointer and transmits the data to the pulse radio module.
*LoRaWAN is a registered trademark of Semtech Corporation.
- Remote data collection Gidrotek E-T 1,6-U
- Average lifetime 10 years (1 data transfer per day)**
- Mounting up to 5 minutes
*Service life depends on data transfer frequency
Product information
- Description
- Downloads
OPERATION PRINCIPLE
The sensor is mounted on the meter case and connected to the radio module. The device starts counting the revolutions of the water meter’s dial and transmits the data to the pulse radio module.
The sensor’s data is sent as meter pulses, the number of which is equal or proportional to revolutions of the water meter’s dial.
All data from the sensor is stored in the radio module’s non-volatile memory and transmitted at regular intervals via the LoRaWAN wireless network to a server, where it is converted into readings.
Sensor Specifications
- Sensor model — Jooby Aquaris SNS WOGI01 100
- Water meter model — Gidrotek E-T 1,6-U
- Pulse coefficient — 1 pulse per 1 liter
- Operating temperature — 1 °C … 60 °C
