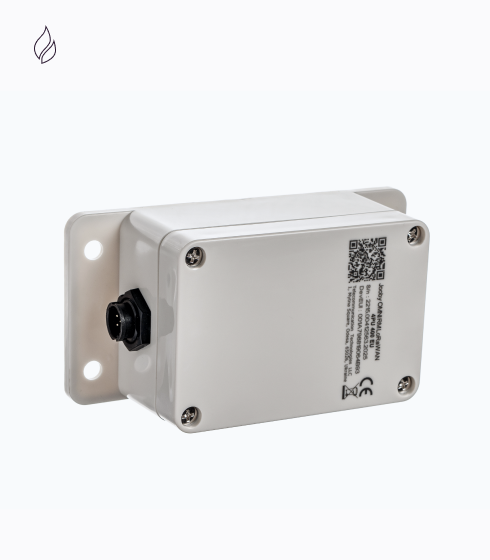

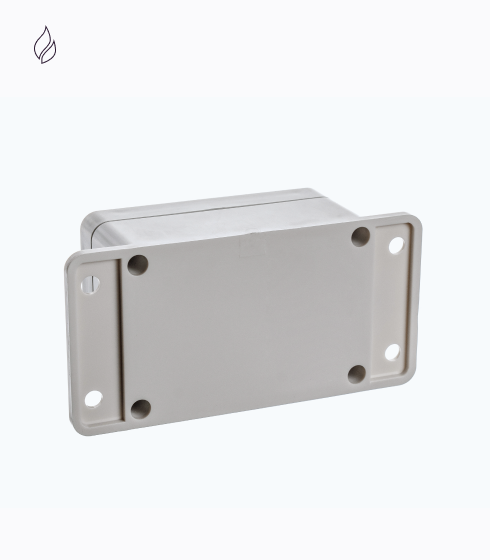

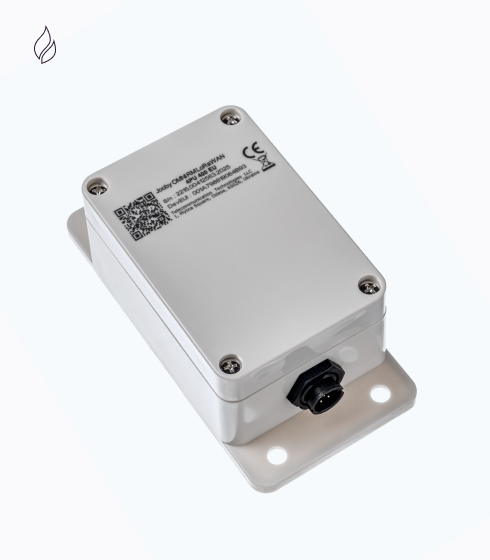

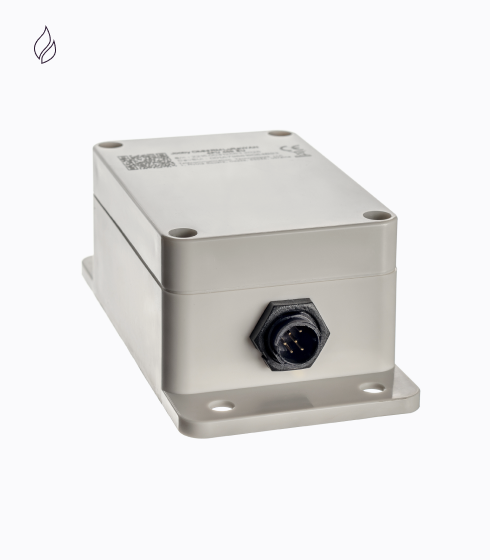

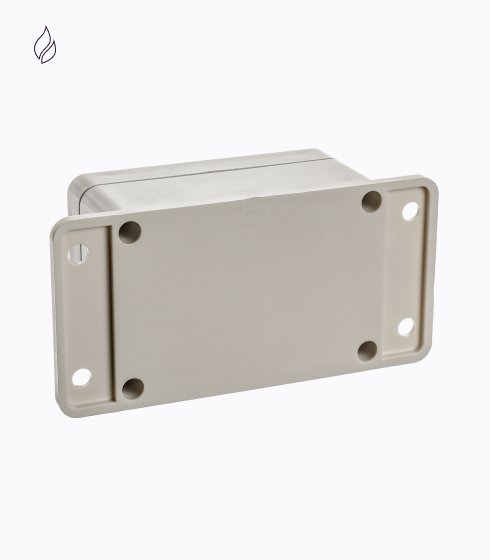

Jooby OMNI RM LoRaWAN 4PU 400 EU
LoRaWAN radio module with external connection sensors for various meter types
The radio module is designed for automatic data collection from various types of utility meters and wireless transmission over a secure LoRaWAN network. The device is rated IP67, making it suitable for operation in harsh environmental and industrial conditions.
It features a high-efficiency battery that ensures at least 10 years of autonomous operation when transmitting data 4 times per day (SF12).
Collected data is processed and displayed in a centralized monitoring system, allowing real-time resource consumption control. The system supports detailed logging by hour, day, month, and year.
Data transmission frequency can be configured via the mobile application, ranging from once per hour to once per day.
The device comes with a warranty of:
– 24 months for retail sales;
– Up to 60 months (5 years) for project-based deployments.
*LoRaWAN is a registered trademark of Semtech Corporation.
- Remote data collection from all metering points
- Average lifetime 13+ years (1 data transfer per day)*
- Data transmission frequency customized
- Message alert Battery charge
- Enclosure protection level IP67 (IP68 version available for project deployments)
- Installation up to 5 minutes
*Service life depends on data transfer frequency
Product information
- Description
OPERATION PRINCIPLE
The radio module is mounted on a flat surface near the meters and connected via “dry contact” or “open collector” interfaces.
To maintain the IP67 protection level, installation and connection of impulse sensors or meters must be performed by an authorized technician trained by Jooby.
After activation via the mobile app, the module starts transmitting meter readings over the LoRaWAN network to a base station. The data is then forwarded via the internet to the utility provider’s server and becomes available in the Jooby RDC Dashboard, which can be accessed anytime and from anywhere with an internet connection.
The device is certified by the LoRa Alliance, ensuring full compliance with international LoRaWAN standards.
