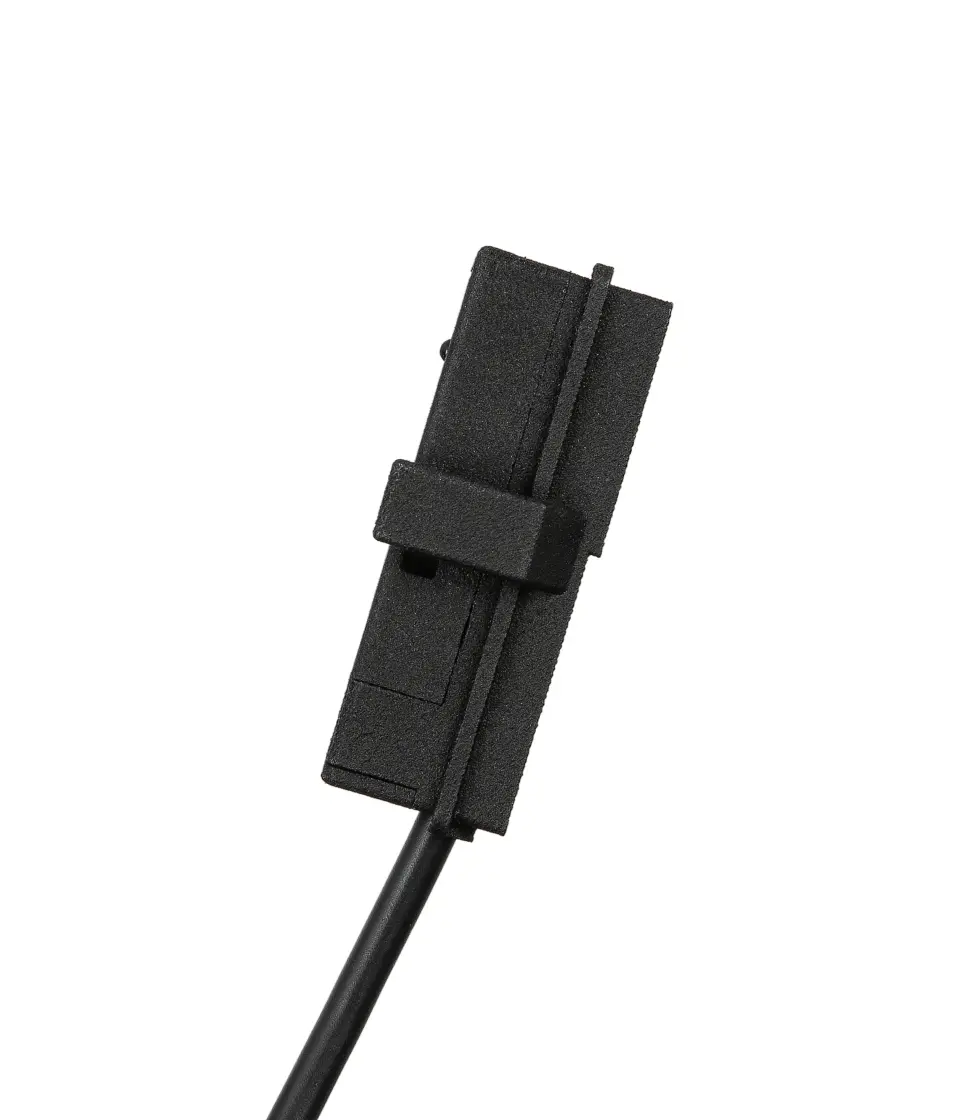

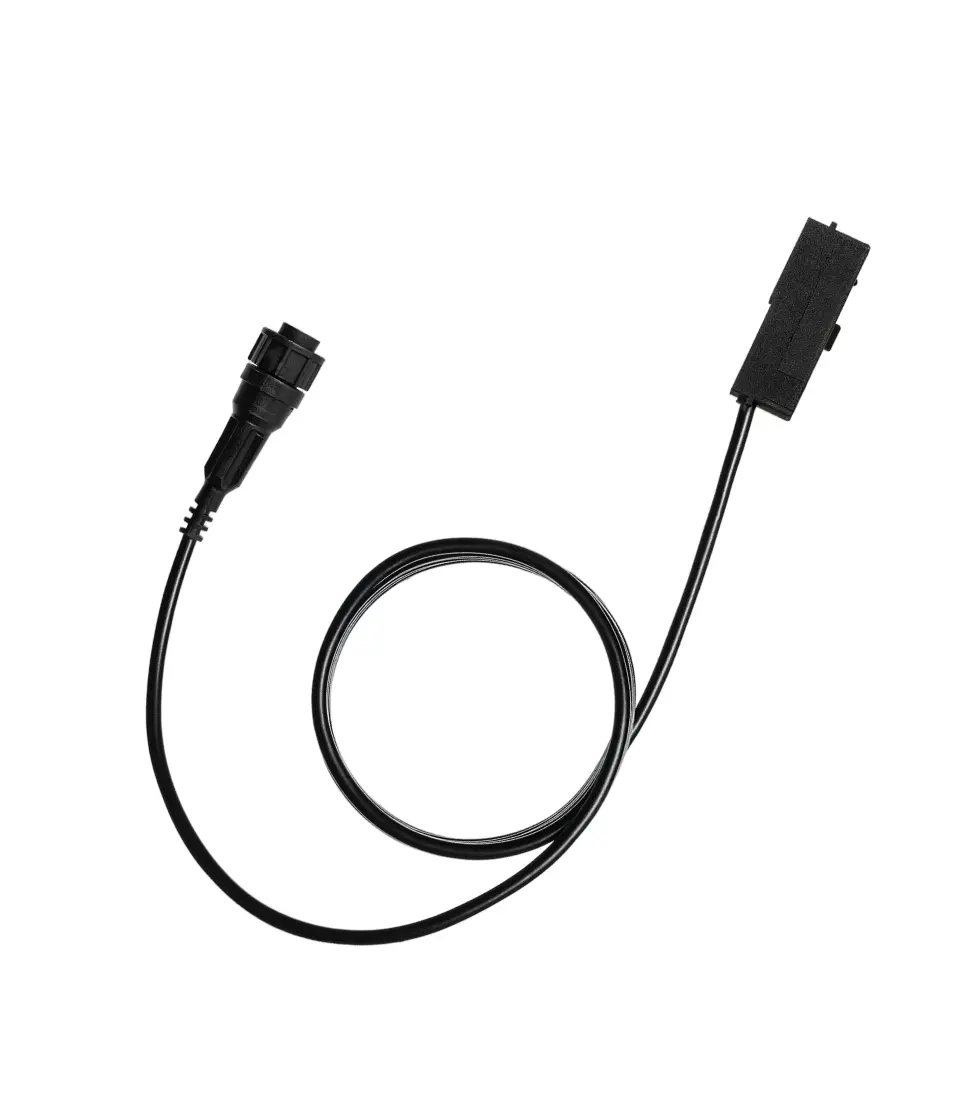

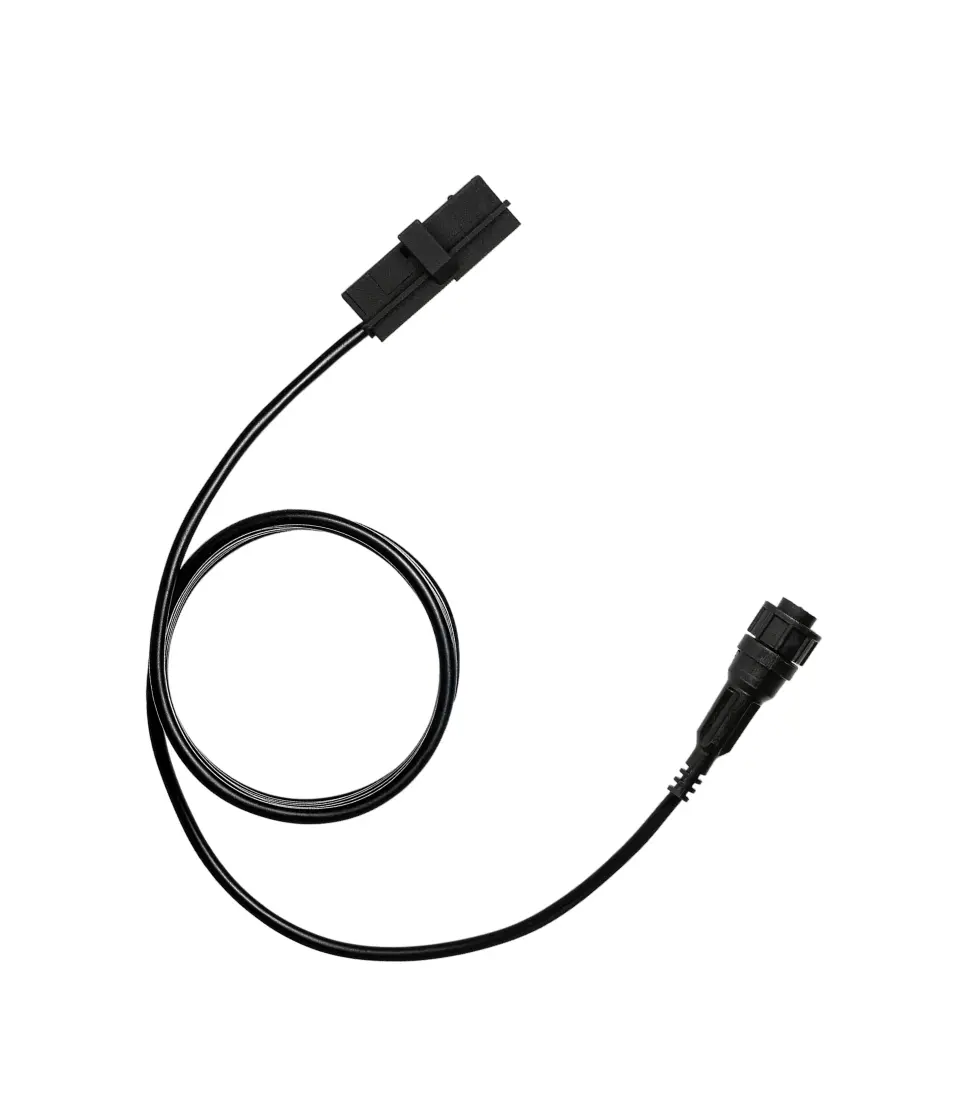

Jooby EPHIR SNS GMIT02 100
Smart external connection sensor for Itron gas meters
A magnetic sensor designed to transmit data from meters to the Jooby OMNI RM LoRaWAN 4PU 300 EU pulse radio module via a connector.
The device is mounted on the meter housing and connects to the radio module via a connector. After that, the sensor begins to record the number of rotations of the meter’s counting wheel with a magnet and transmit the data to the pulse radio module.
*LoRaWAN is a registered trademark of Semtech Corporation.
- Remote data collection Itron gas meter
- Average lifetime 10 years (1 data transfer per day)*
- Mounting up to 5 minutes
*Service life depends on data transfer frequency
Product information
- Description
OPERATION PRINCIPLE
The sensor generates counting pulses, which are received by the radio module and stored in non-volatile memory. At a set interval, the radio module sends the information received from the sensor to the server via a specific wireless network.
When the sensor is connected to Jooby OMNI RM LoRaWAN 4PU 300 EU radio modules, the radio module is activated by a signal from the sensor upon installation on the meter.
The sensor is able to detect the effect of an external magnetic field on the meter.
Sensor Specifications
- Sensor model — Jooby EPHIR SNS GMIT02 100
- Gas meter model — Itron G-Itron ACD-G10C
- Pulse coefficient — 1 pulse per 100 m³
- Operating temperature — 1 °C … 60 °C
