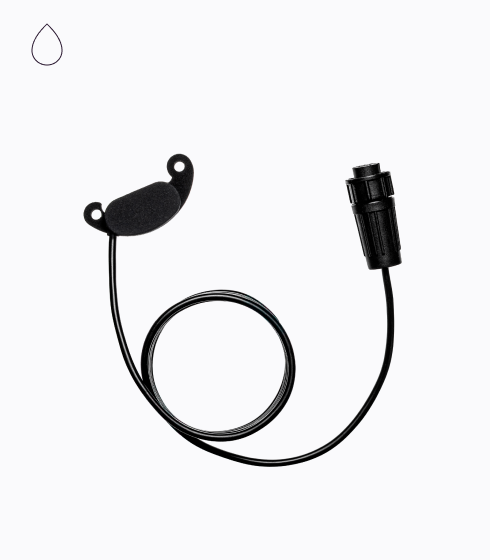

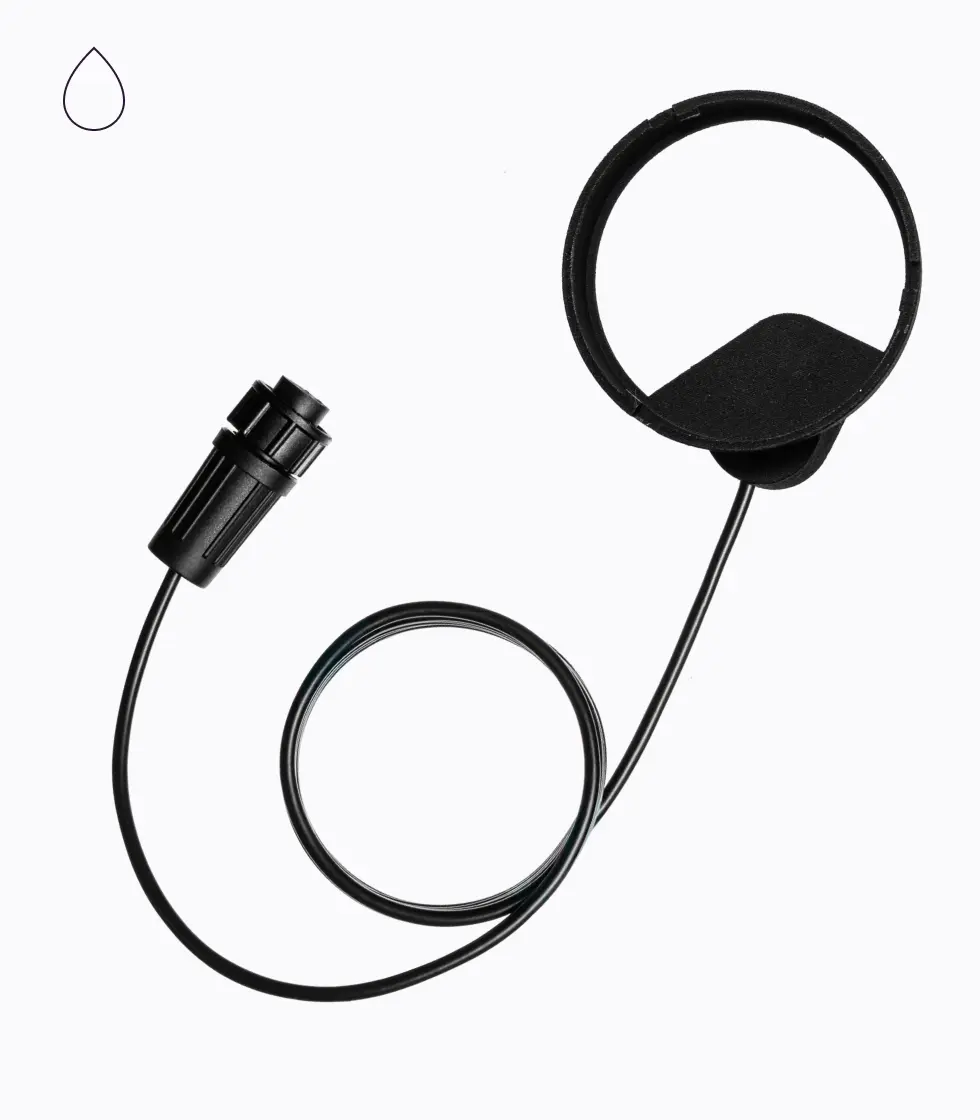

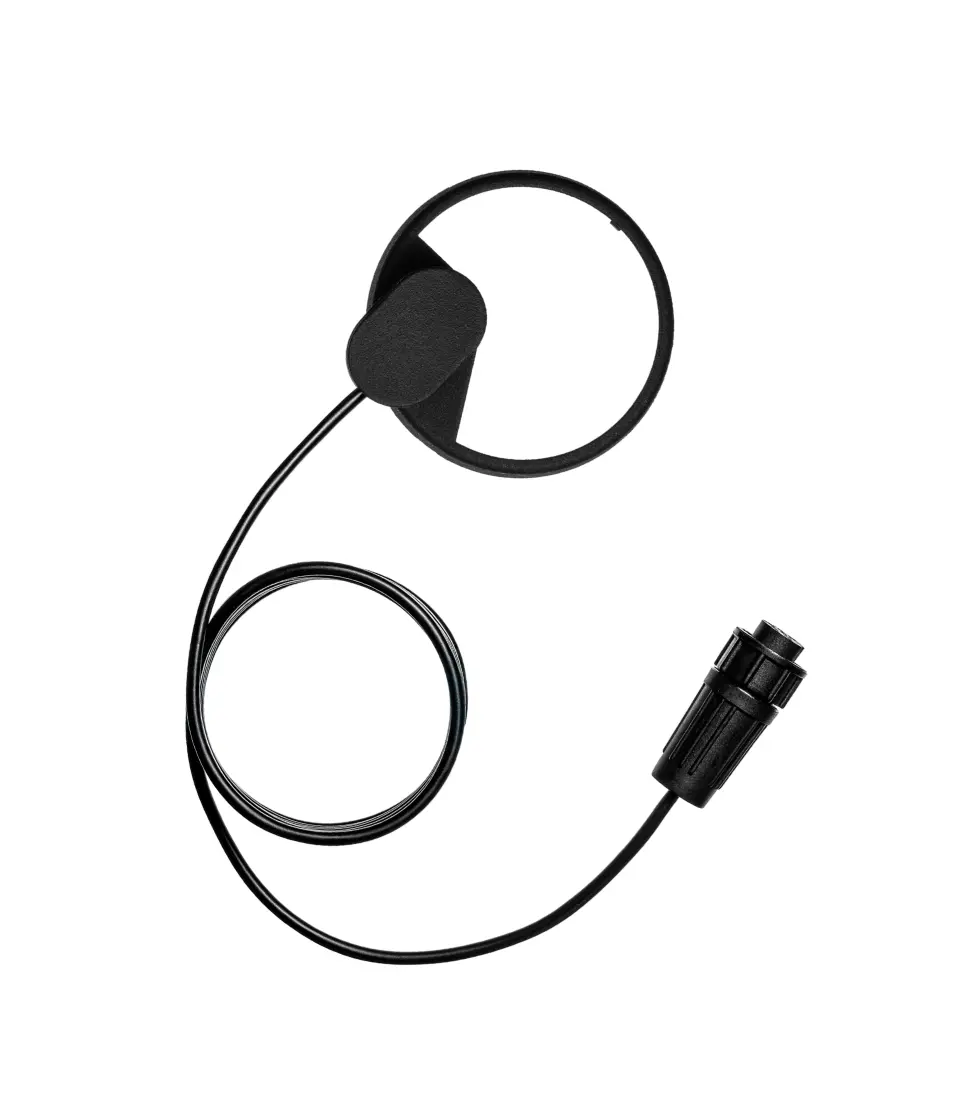

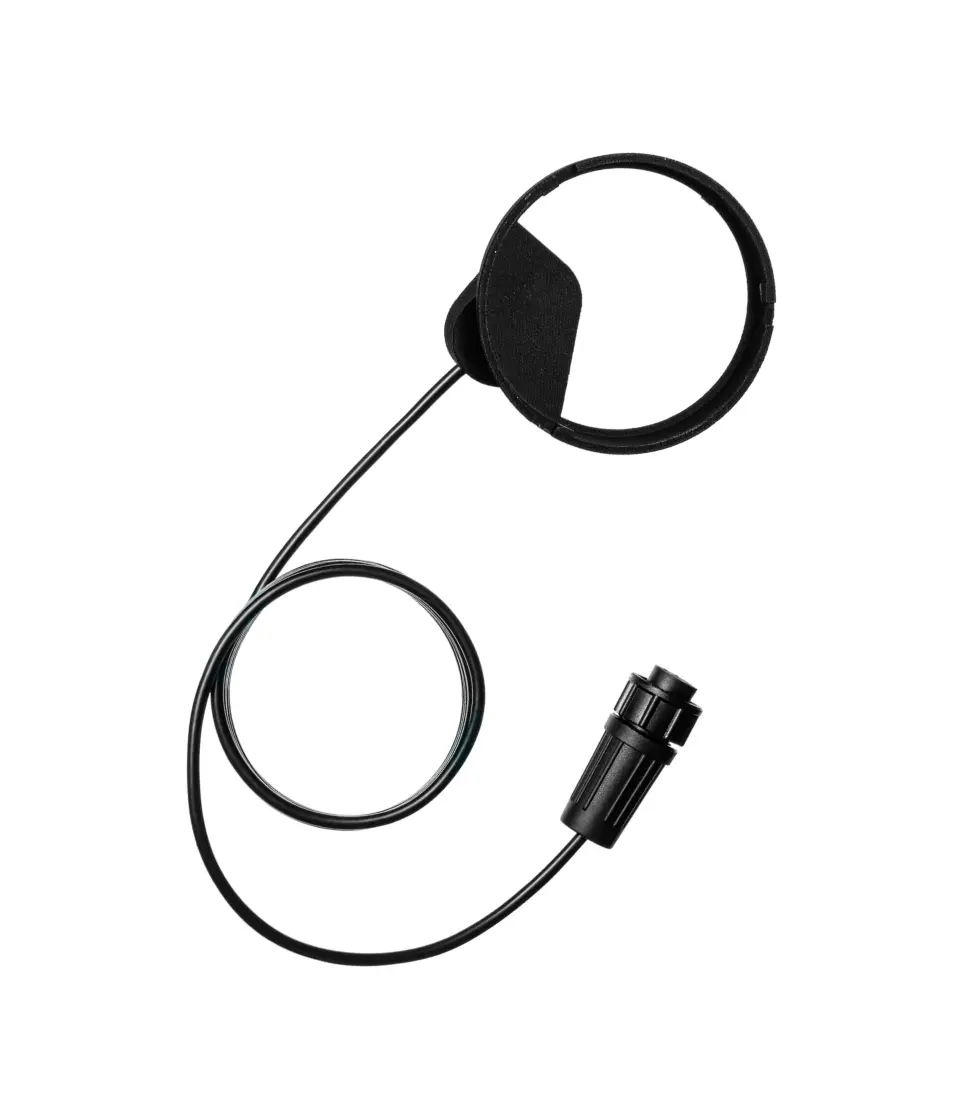

JOOBY AQUARIS SNS WIAP03 100
Smart external connection sensor for W-Apator MWN50 water meters
This inductive sensor is designed to transmit data from analog water meters to the pulse radio module Jooby OMNI RM LoRaWAN 4PU 204 EU.
The device is installed on the enclosure of the water meter and connected to the radio module. The sensor then begins to record the number of revolutions of the meter’s measuring hand and transmits the data to the pulse radio module.
*LoRaWAN is a registered trademark of Semtech Corporation.
- Remote data collection Apator water meters*
- Average lifetime 10 years (1 data transfer per day)**
- Mounting up to 5 minutes
*The complete list of compatible meter models is shown in the table below
**Service life depends on data transfer frequency
Product information
- Description
- Downloads
OPERATION PRINCIPLE
When the radio module is activated, the sensor installed on the meter starts reading the data. During this process, the information is transmitted from the sensor to the radio module in the form of pulses, the number of which corresponds to the number of revolutions of the water meter’s hand or a multiple of it.
This data is transmitted via a special cable 1.5 meters long using a PY07-6 connector.
The collected information is stored in the radio module’s non-volatile memory and transmitted at a set frequency to the server of the resource provider via the LoRaWAN network.
The received data is processed by the metering system and converted into a visible format, allowing the supplier to monitor and analyze the resource consumption in real time.
Sensor Specifications
- Sensor model – Jooby Aquaris SNS WIAP03 100
- Water meter model – Apator MWN50
- Pulse coefficient – 1 pulse per 10 liter
- Operating temperature – 1 °C … 60 °C
