Product information

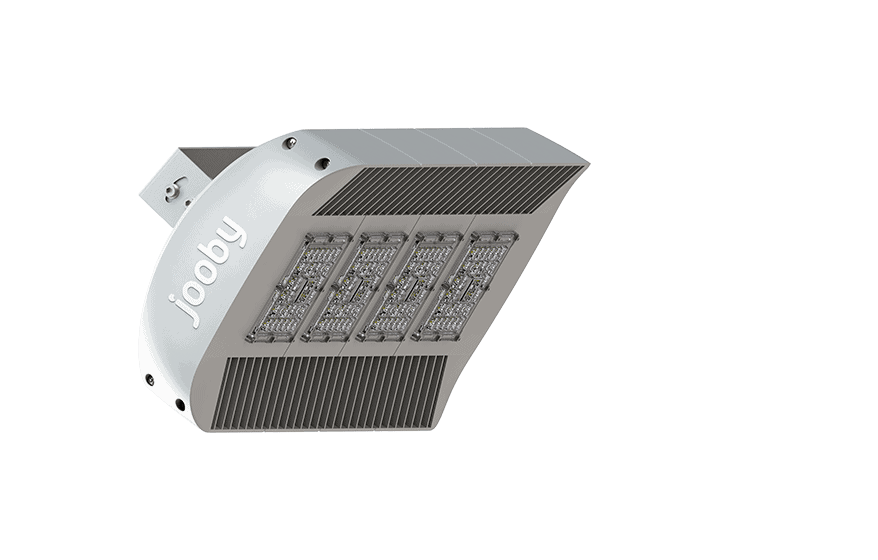

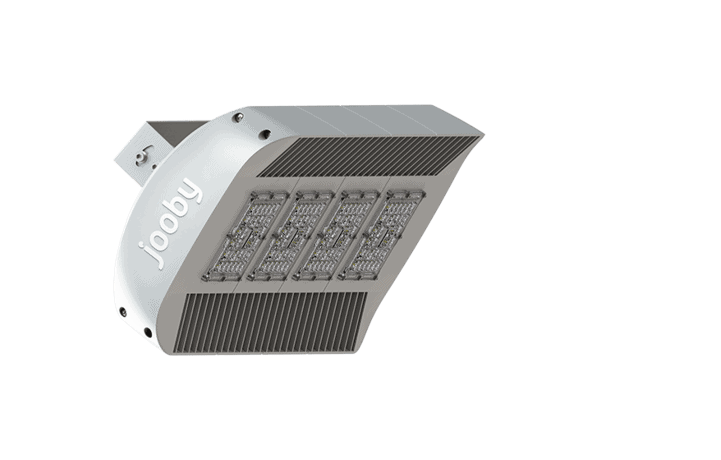

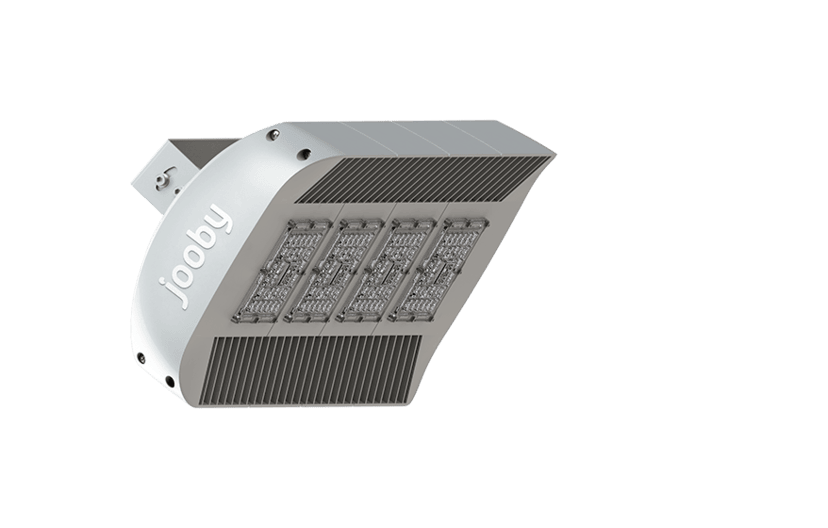

Avenue S4-F-SMD is a floodlight with four SMD LED arrays, the maximum energy consumption of 320 W, and an input voltage of 120–280 V.
The device can be mounted on a flat surface with a bracket or suspended on a rope with a hook. The device is resistant to moisture and dust. Avenue S4-F-SMD is compatible with Avenue Smart Cover controllers, as well as, surge protection and dimming modules.
Avenue S4x80-F6/90-5K7L-Cr
Input voltage frequency
120 В – 280 V
Power factor
>0,98
Lifetime
>100000 hours
Electrical safety class according to ЕN 60598-1
І
Input voltage frequency
50 Hz
Ingress protection
IP66
Maintenance factor
L70
Failure rate
F50
Dimensions and weight
Dimensions
665x250x195 mm / 665x250x155 mm
Weight
11,9 – 12,4 kg
Projected area
0,155 m2
Installation
Flat-surface mounted
Flat-surface mounted, adjustable-width bracket
Avenue S4x80-XX/XX-5K7L-Cr-SPC-F3
The device’s light distribution curve can be optimized with a variety of diffuser lenses. Jooby offers lenses with the following beam spread:
Option code
Light distribution angles
Light distribution diagram
F6/30
30°
F6/65
65°
F6/90
90°
F7/18
18°
F7/22
22°
F7/30
30°
F7/45
45°
F7/1840
18°/40°
F7/115d
115°
F7/125
125°
Avenue S4xXX-XX-XXXX-XX-SPC-F3
Option code
Power range, W
Color temperature (CCT), K
CRI
Luminous flux, lm
Efficacy, lm/W
Energy efficiency class (EEC)
LED manufacturer
S4x80-F6/30-3K7M-Cr
320
3000
70
40320
126
A++
Cree
S4x80-F6/30-3K8S-Cr
320
3000
80
36288
113
A+
Cree
S4x80-F6/30-4K7L-Cr
320
4000
70
42336
132
A++
Cree
S4x80-F6/30-4K8S-Cr
320
4000
80
38304
120
A+
Cree
S4x80-F6/30-5K7L-Cr
320
5000
70
42336
132
A++
Cree
S4x80-F6/65-3K7M-Cr
320
3000
70
40320
126
A++
Cree
S4x80-F6/65-3K8S-Cr
320
3000
80
36288
113
A+
Cree
S4x80-F6/65-4K7L-Cr
320
4000
70
42336
132
A++
Cree
S4x80-F6/65-4K8S-Cr
320
4000
80
38304
120
A+
Cree
S4x80-F6/65-5K7L-Cr
320
5000
70
42336
132
A++
Cree
S4x80-F6/90-3K7M-Cr
320
3000
70
40320
126
A++
Cree
S4x80-F6/90-3K8S-Cr
320
3000
80
36288
113
A+
Cree
S4x80-F6/90-4K7L-Cr
320
4000
70
42336
132
A++
Cree
S4x80-F6/90-4K8S-Cr
320
4000
80
38304
120
A+
Cree
S4x80-F6/90-5K7L-Cr
320
5000
70
42336
132
A++
Cree
S4x80-F7/115d-3K7I-Cr
320
3000
70
34560
108
A+
Cree
S4x80-F7/115d-3K8T-Cr
320
3000
80
30816
96
A+
Cree
S4x80-F7/115d-4K7S-Cr
320
4000
70
36288
113
A+
Cree
S4x80-F7/115d-4K8I-Cr
320
4000
80
32832
103
A+
Cree
S4x80-F7/115d-5K7S-Cr
320
5000
70
36288
113
A+
Cree
S4x80-F7/125-3K7L-Cr
320
3000
70
44160
138
A++
Cree
S4x80-F7/125-3K8M-Cr
320
3000
80
39376
123
A+
Cree
S4x80-F7/125-4K7H-Cr
320
4000
70
46368
145
A++
Cree
S4x80-F7/125-4K8L-Cr
320
4000
80
41952
131
A++
Cree
S4x80-F7/125-5K7H-Cr
320
5000
70
46368
145
A++
Cree
S4x80-F7/18-3K7M-Os
320
3000
70
40992
128
A++
Osram
S4x80-F7/18-3K8I-Os
320
3000
80
34848
109
A+
Osram
S4x80-F7/18-4K7L-Os
320
4000
70
44688
140
A++
Osram
S4x80-F7/18-4K8S-Os
320
4000
80
37312
117
A+
Osram
S4x80-F7/18-5K7L-Os
320
5000
70
44688
140
A++
Osram
S4x80-F7/1840-3K7M-Os
320
3000
70
40992
128
A++
Osram
S4x80-F7/1840-3K8I-Os
320
3000
80
34848
109
A+
Osram
S4x80-F7/1840-4K7L-Os
320
4000
70
44688
140
A++
Osram
S4x80-F7/1840-4K8S-Os
320
4000
80
37312
117
A+
Osram
S4x80-F7/1840-5K7L-Os
320
5000
70
44688
140
A++
Osram
S4x80-F7/22-3K7M-Os
320
3000
70
40992
128
A++
Osram
S4x80-F7/22-3K8I-Os
320
3000
80
34848
109
A+
Osram
S4x80-F7/22-4K7L-Os
320
4000
70
44688
140
A++
Osram
S4x80-F7/22-4K8S-Os
320
4000
80
37312
117
A+
Osram
S4x80-F7/22-5K7L-Os
320
5000
70
44688
140
A++
Osram
S4x80-F7/30-3K7L-Cr
320
3000
70
42240
132
A++
Cree
S4x80-F7/30-3K8S-Cr
320
3000
80
37664
118
A+
Cree
S4x80-F7/30-4K7L-Cr
320
4000
70
44352
139
A++
Cree
S4x80-F7/30-4K8M-Cr
320
4000
80
40128
125
A+
Cree
S4x80-F7/30-5K7L-Cr
320
5000
70
44352
139
A++
Cree
S4x80-F7/45-3K7L-Cr
320
3000
70
42240
132
A++
Cree
S4x80-F7/45-3K8S-Cr
320
3000
80
37664
118
A+
Cree
S4x80-F7/45-4K7L-Cr
320
4000
70
44352
139
A++
Cree
S4x80-F7/45-4K8M-Cr
320
4000
80
40128
125
A+
Cree
S4x80-F7/45-5K7L-Cr
320
5000
70
44352
139
A++
Cree
The floodlight can be equipped with a dimmer module to be controlled by a 3rd-party control system using standard dimming protocols.
The dimmer module is installed into the front compartment of the floodlight. In some cases, the floodlights are equipped with an additional external cable to accept dimming signal.
Avenue S4x80-F6/90-5K7L-Cr-SPC-XXX
Option code
Features
Dimming interface
Additional signal cable
D01
External dimming via analog protocol
0–10 V, 1–10 V
yes
DL
External dimming via digital protocol
DALI
yes
DEM
Emergency dimming on AC to DC switching
Manual preset (10–70%)
no
DCN
Dimming to a preset level
Manual preset (10–100%)
no
DMV
Voltage modulation dimming
170–220 V mains voltage modulation
no
The floodlight can have a built-in surge protection complete with signal output. With Avenue Smart Cover installed, the protection module status can be polled from Jooby CMS.
Avenue S4x80-F6/90-5K7L-Cr-XXX
Option code
Maximum surge voltage/current, kV/kA
Maximum single pulse discharge current, kA
Compliance
No
None
None
None
SPC
10/5
10
EN 61000-4-5, IEEE C62.41.2 (category С Low)
SP2C
20/10
20
EN 61000-4-5, IEEE C62.41.2 (category С High)
Light control panel
Map of the object with the location of the floodlights
Daily program of floodlight control
Annual program of floodlights operation
Floodlight operation statistics in the diagram form
