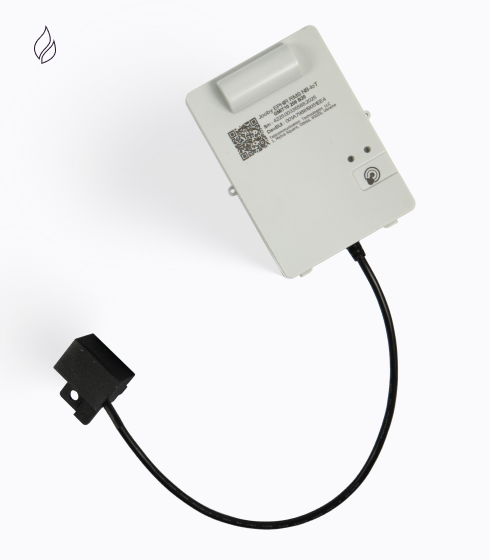

Jooby EPHIR RMS NB-IoT GMSG10 206 B20
NB-IoT radio module with sensors for Samgas gas meter
The Jooby radio module with an intelligent sensor for the Samgas gas meter. It is designed for automatic meter reading and data transmission via the MQTT protocol over the NB-IoT network.
The device detects unauthorized tampering attempts and instantly sends an alert to the service provider.
- Remote data collection from all metering points
- Average lifetime 10 years (1 data transfer per day)*
- Data transmission frequency customized (default once every 24 hours)
- Message alert tampering
- Installation up to 5 minutes
- Radio module dimensions**, mm 100 x 77 x 56
*Service life depends on data transfer frequency
**Without the remote sensor
Product information
- Description
- Downloads
OPERATION PRINCIPLE
JOOBY EPHIR RMS NB-IoT automatically reads meter data using a remote sensor that detects every full rotation of a designated section of the gas meter’s measuring mechanism and increments the pulse count by 1.
The radio module is installed near the meter, while the external sensor is placed directly on the meter and securely attached. The sensors also allow detecting any unauthorized tampering with the radio module and can notify the service provider accordingly.
The radio module is equipped with an electronic log capable of storing up to 512 events or incidents and retaining data for up to 10 years, ensuring the device’s longevity and reliability.
