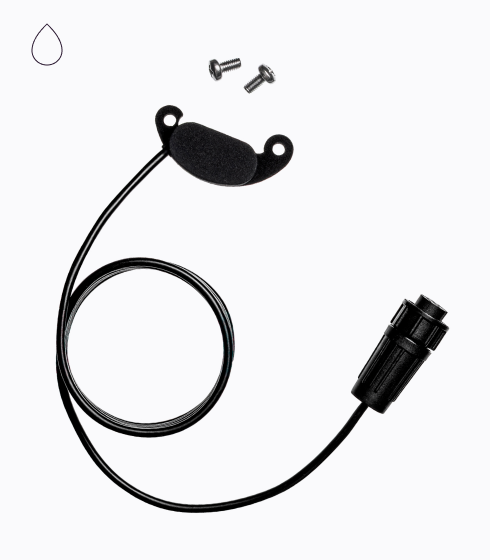

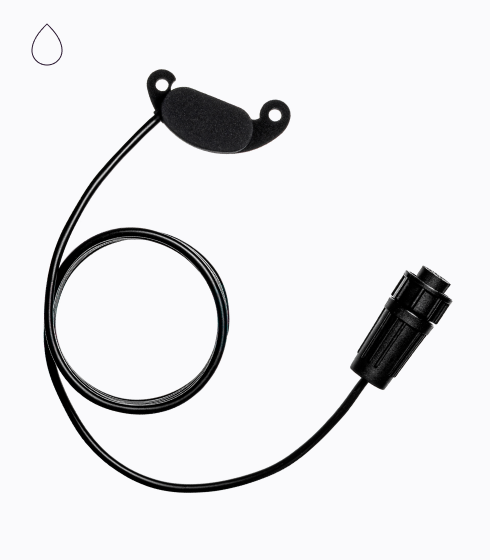

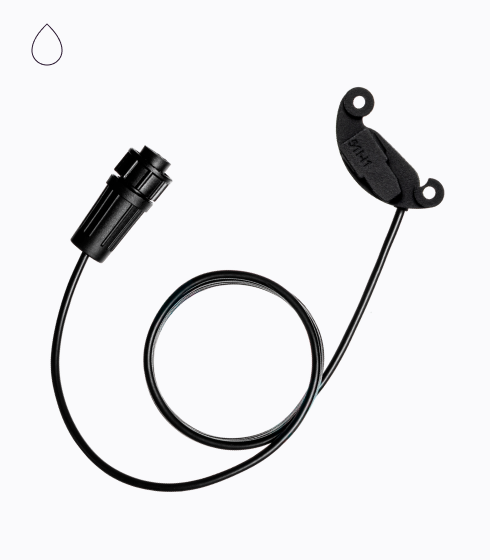

JOOBY AQUARIS SNS WIBA01 100
Smart external connection sensor for W-Baylan KK-12 water meters
This inductive sensor is designed to transmit data from analog water meters to the pulse radio module Jooby OMNI RM LoRaWAN 4PU 204 EU.
The device is installed on the enclosure of the water meter and connected to the radio module. The sensor then begins to record the number of revolutions of the meter’s measuring hand and transmits the data to the pulse radio module.
*LoRaWAN is a registered trademark of Semtech Corporation.
- Remote data collection Baylan water meters*
- Average lifetime 10 years (1 data transfer per day)**
- Mounting up to 5 minutes
*The complete list of compatible meter models is shown in the table below
**Service life depends on data transfer frequency
Product information
- Description
- Downloads
OPERATION PRINCIPLE
After the installation of the sensor on the meter’s enclosure, data reading starts. This data is received by the radio module in the form of counted pulses, with their number corresponding to the number of revolutions of the water meter’s hand or a multiple of it.
The data is transmitted through a 1.5 meter long cable with a PY07-6 connector.
All information received from the sensor is stored in the radio module’s non-volatile memory. The device transmits this information to the resource provider’s server via the LoRaWAN network at specified intervals.
The system converts the data into metrics that the resource provider can observe, analyze, and process through the administration panel.
Sensor Specifications
- Sensor model – Jooby Aquaris SNS WIBA01 100
- Baylan KK-12
- Pulse coefficient – 1 pulse per 100 liter
- Operating temperature – 1 °C … 60 °C
