Product information

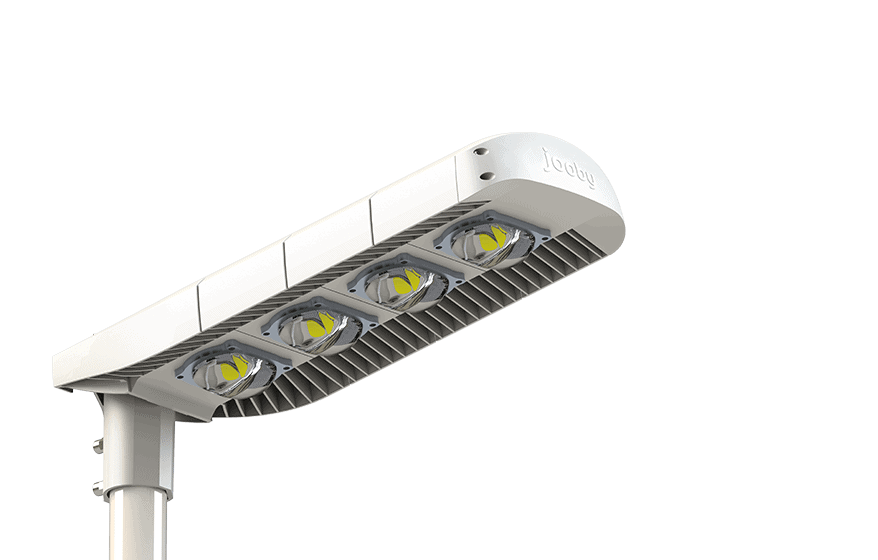

Avenue C4-S-COB is a mains-powered luminaire with four COB LED arrays, the maximum energy consumption of 320 W, and an input voltage of 120–280 V.
The luminaire can be equipped with console and torchiere mounts. It is also compatible with a surge protection module and Avenue Smart Cover controller and features dust and moisture protection.
Avenue C4x80-S1-5K7H-Ci-SPC
Input voltage frequency
120–280 V
Power factor
>0,98
Lifetime
>100,000 hours
Electrical safety class according to ЕN 60598-1
І
Input voltage frequency
50 Hz
Ingress protection
IP66
Maintenance factor
L70
Failure rate
F50
Dimensions and weight
Dimensions
790x250x130 mm
Weight
14,2 kg
Projected area
0,167 m2
Installation
Console
Torchiere
Inclination angles
-5°…+30°
-5°…+30°
Avenue C4x80-XX-5K7H-Ci-SPC
For optimal performance in different settings, e.g., stadiums, highways, and industrial facilities, the device can be retrofitted with a variety of lenses. These modify the light distribution curve along and across the luminaire’s axis.
Option code
Light distribution angles
Light distribution diagram
S1
145°/65°
S2
170°/120°
S3
160°/80°
Avenue C4xXX-XX-XXXX-XX-SPC
Option code
Power range, W
Color temperature (CCT), K
CRI
Luminous flux, lm
Efficacy, lm/W
Energy efficiency class (EEC)
LED manufacturer
C4x80-S1-3K7H-Ci
320
3000
70
45584
142
A++
Citizen
C4x80-S1-3K8L-Ci
320
3000
80
43200
135
A++
Citizen
C4x80-S1-4K7H-Ci
320
4000
70
46775
146
A++
Citizen
C4x80-S1-4K8L-Ci
320
4000
80
44094
138
A++
Citizen
C4x80-S1-5K7H-Ci
320
5000
70
47371
148
A++
Citizen
C4x80-S2-3K7H-Ci
320
3000
70
45584
142
A++
Citizen
C4x80-S2-3K8L-Ci
320
3000
80
43200
135
A++
Citizen
C4x80-S2-4K7H-Ci
320
4000
70
46775
146
A++
Citizen
C4x80-S2-4K8L-Ci
320
4000
80
44094
138
A++
Citizen
C4x80-S2-5K7H-Ci
320
5000
70
47371
148
A++
Citizen
C4x80-S3-3K7H-Ci
320
3000
70
45584
142
A++
Citizen
C4x80-S3-3K8L-Ci
320
3000
80
43200
135
A++
Citizen
C4x80-S3-4K7H-Ci
320
4000
70
46775
146
A++
Citizen
C4x80-S3-4K8L-Ci
320
4000
80
44094
138
A++
Citizen
C4x80-S3-5K7H-Ci
320
5000
70
47371
148
A++
Citizen
The luminaire can be equipped with a dimmer module to be controlled by a 3rd-party control system using standard dimming protocols.
The dimmer module is installed into the front compartment of the luminaire. In some cases, luminaires also come with their own dedicated dimming control cable.
Avenue C4x80-S1-5K7H-Ci-SPC-XXX
Option code
Features
Dimming interface
Additional signal cable
D01
External dimming via analog protocol
0–10 V, 1–10 V
yes
DL
External dimming via digital protocol
DALI
yes
DEM
Emergency dimming on AC to DC switching
Manual preset (10–70%)
no
DCN
Dimming to a preset level
Manual preset (10–100%)
no
DMV
Voltage modulation dimming
170–220 V mains voltage modulation
no
The luminaire can have a built-in surge protection complete with signal output. With Avenue Smart Cover installed, the protection module status can be polled from Jooby CMS.
Avenue C4x80-S1-5K7H-Ci-SPC-XXX
Option code
Maximum surge voltage/current, kV/kA
Maximum single pulse discharge current, kA
Compliance
No
None
None
None
SPC
10/5
10
EN 61000-4-5, IEEE C62.41.2 (category С Low)
SP2C
20/10
20
EN 61000-4-5, IEEE C62.41.2 (category С High)
Light control panel
Map of the object with the location of the floodlights
Daily program of floodlight control
Annual program of floodlights operation
Floodlight operation statistics in the diagram form
How our Smart Lighting solution works
Devices
LoRaWAN® base station network
Jooby CMS software
Technical support
Avenue Smart Cover
To transform a regular Avenue luminaire into a smart one, an Avenue Smart Cover controller needs to be installed. This enables you to connect your luminaires to Jooby CMS for management and monitoring.
